MCF 0.25W 820R
Manufacturer:
Multicomp
Mfr.Part #:
MCF 0.25W 820R
Datasheet:
Description:

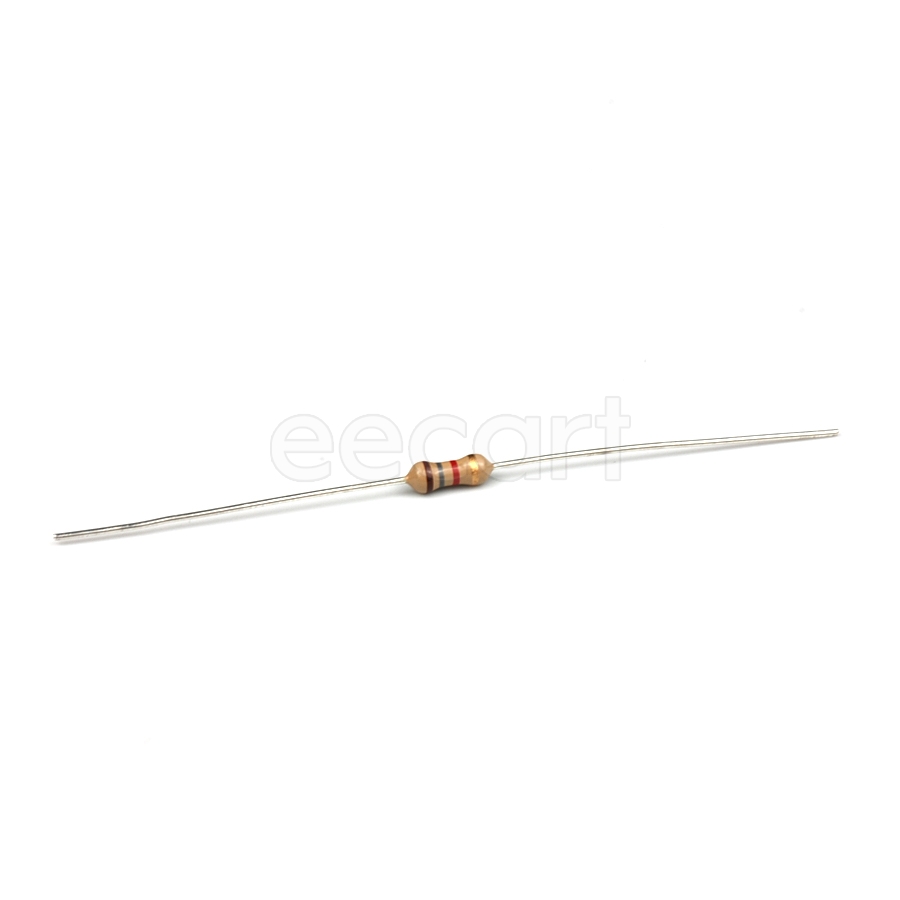

Through-Hole Resistors Through Hole 820 Ω 5 % 250 mW Carbon Film
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Tolerance | 5 % |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Resistance | 820 Ω |
| Power Rating | 250 mW |
| Composition(Kit Type) | Carbon Film |
| Temperature Coefficient | 450 ppm/°C |
| Packaging | Reel |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Diameter | 540 µm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Lead Length | 28 mm |
| Number of Terminations | 2 |
Stock: 1259
Distributors
pcbx
pcbxUnit Price$0.11088
Ext.Price$0.11088
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11088 | $0.11088 |
| 10 | $0.05544 | $0.55440 |
| 50 | $0.04743 | $2.37150 |
| 100 | $0.04058 | $4.05800 |
| 500 | $0.02364 | $11.82000 |
| 1000 | $0.01803 | $18.03000 |
| 3000 | $0.01593 | $47.79000 |
| 5000 | $0.01408 | $70.40000 |
| 10000 | $0.01216 | $121.60000 |
| 30000 | $0.01050 | $315.00000 |
| 50000 | $0.00906 | $453.00000 |
